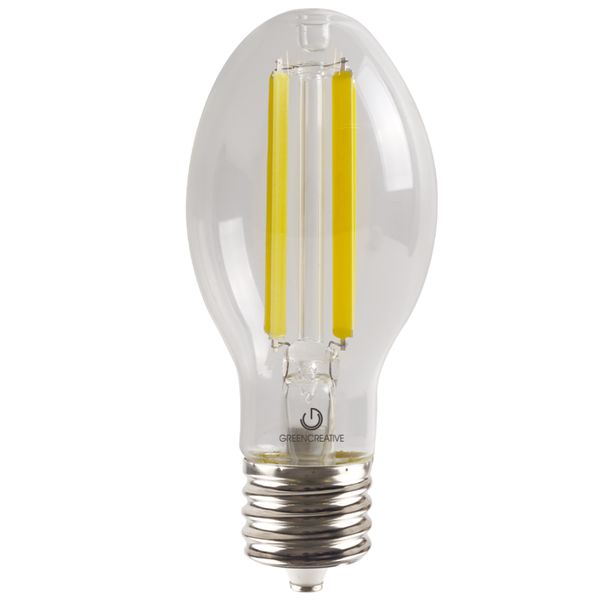

ED23 LED Filament HID Replacement Lamp - 25 Watt - 4000 Lumens - 5000K - Medium E26 - 82 CRI - 120-277V
ED23 LED Filament HID Replacement Lamp - 25 Watt - 4000 Lumens - 5000K - Medium E26 - 82 CRI - 120-277V
ED23 LED Bulbs by Green Creative
Couldn't load pickup availability
Payment methods
Your payment details are transmitted securely during checkout. Card numbers aren’t stored, and full card information isn’t accessible.
Shipping
Shipping
Free shipping on orders $99+ within the contiguous U.S. (excludes Alaska & Hawaii). Orders under $99 ship via flat-rate ground for $14.99. Review our full Shipping Policy here.
Returns
Returns
Most unused items in original packaging may be returned within 30 days of delivery for a refund. Items labeled “Final Sale,” “Open Box,” or “Clearance” are not returnable. Shipping charges are non-refundable and a restocking fee applies. Review our full Return Policy here.
Share
Specifications
| Brand: | Green Creative |
| Part Number: | 25FHIDDIM/ED23/850/277V/E26 |
| UPC: | 790492380987 |
| Category: | ED23 LED Bulbs |
| Wattage: | 25 Watts |
| Voltage: | 120-277V |
| Lumens: | 4000 |
| Bulb Type: | LED |
| Bulb Shape: | ED23 |
| Bulb Base: | Medium E26 |
| Color Temperature: | 5000K |
| CRI: | 82 |
| Equivalent: | 300W Incandescent, 125W HID |
| Dimmable: | Yes |
| Special Features: | FCC Compliant, DLC Listed |
| Beam Angle: | 360 Degrees |
| Min-Max Operating Temp: | -4°F to 113°F (-20°C to 45°C) |
| Location Rating: | cULus Listed |
| Dimensions: | 7.625"L x 2.9375"D |
| Weight: | 0.35 Lbs. |
| Finish: | Clear |
| Rated Hours: | 50,000 |
| Warranty: | 5 Years |
ED23 LED Bulbs FAQs
What is an ED23 LED bulb and what does it replace?
ED23 is an HID-style elliptical envelope used by many LED retrofits to replace legacy HID or high-watt incandescent lamps in utility and area fixtures.
Which base and voltage options do ED23 LEDs use?
Common bases are E26 medium and E39 mogul; voltages often span 120–277 V. Match the base and voltage to your fixture’s socket and supply.
Are ED23 LEDs ballast-bypass or ballast-compatible?
Many ED23 LEDs are ballast-bypass (line voltage directly to the lamp). Some are ballast-compatible—check your ballast model and the lamp’s approved list before choosing.
How bright are ED23 LEDs and which applications fit best?
Outputs typically range 2000–5000+ lumens for garages, warehouses, and large utility spaces where robust general light is needed.
Are ED23 lamps dimmable and which controls are supported?
Dimming varies by model. Some support triac/ELV; commercial versions may require 0–10 V controls. Verify driver specs and compatible control types.
Can ED23 LEDs be used in enclosed or high-heat fixtures?
Only use if the lamp is rated for enclosed fixtures and the ambient temperature range. Larger bodies run warmer—follow the datasheet closely.
Which color temperatures and CRI are typical for work areas?
Neutral whites (3000–4000K) are common for task areas; 5000K daylight is used for high-contrast work. Choose CRI 80–90 depending on color needs.
Do ED23 LEDs have orientation limits (base up/down/horizontal)?
Some lamps specify allowable orientations for thermal management. Check the datasheet for base-up/down or universal orientation ratings.
What surge protection or environmental ratings matter outdoors?
Outdoor and industrial settings benefit from surge protection and appropriate IP ratings. Confirm wet/damp rating and operating temperature range.
What certifications and warranties should I confirm?
Look for UL/ETL, DLC or Energy Star where applicable, Title 20/JA8 in regulated markets, and a clear 3–5 year warranty.
